Nobody reads the whole set. Now something does.

These are screens from the reader on a public bid document: C2419-01, a Missouri state project, twenty-three sheets. Nothing here is a mock-up, and nothing here came from a client.

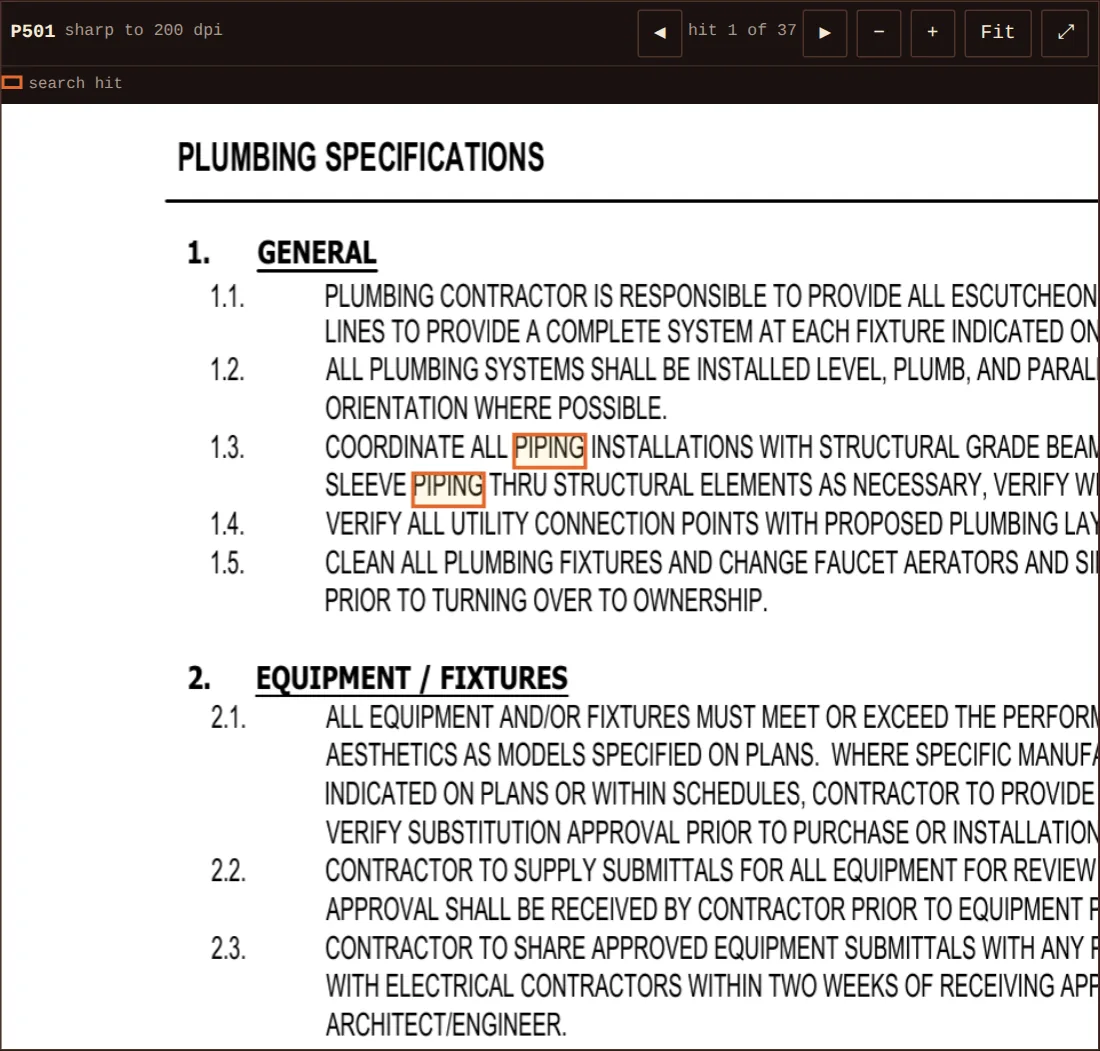

The reader showing sheet P501, Plumbing Specifications, with the word PIPING boxed in paragraph 1.3; the toolbar reads hit 1 of 37.
Every citation names its sheet. This one is P501, paragraph 1.3, in the twenty-three-sheet set.

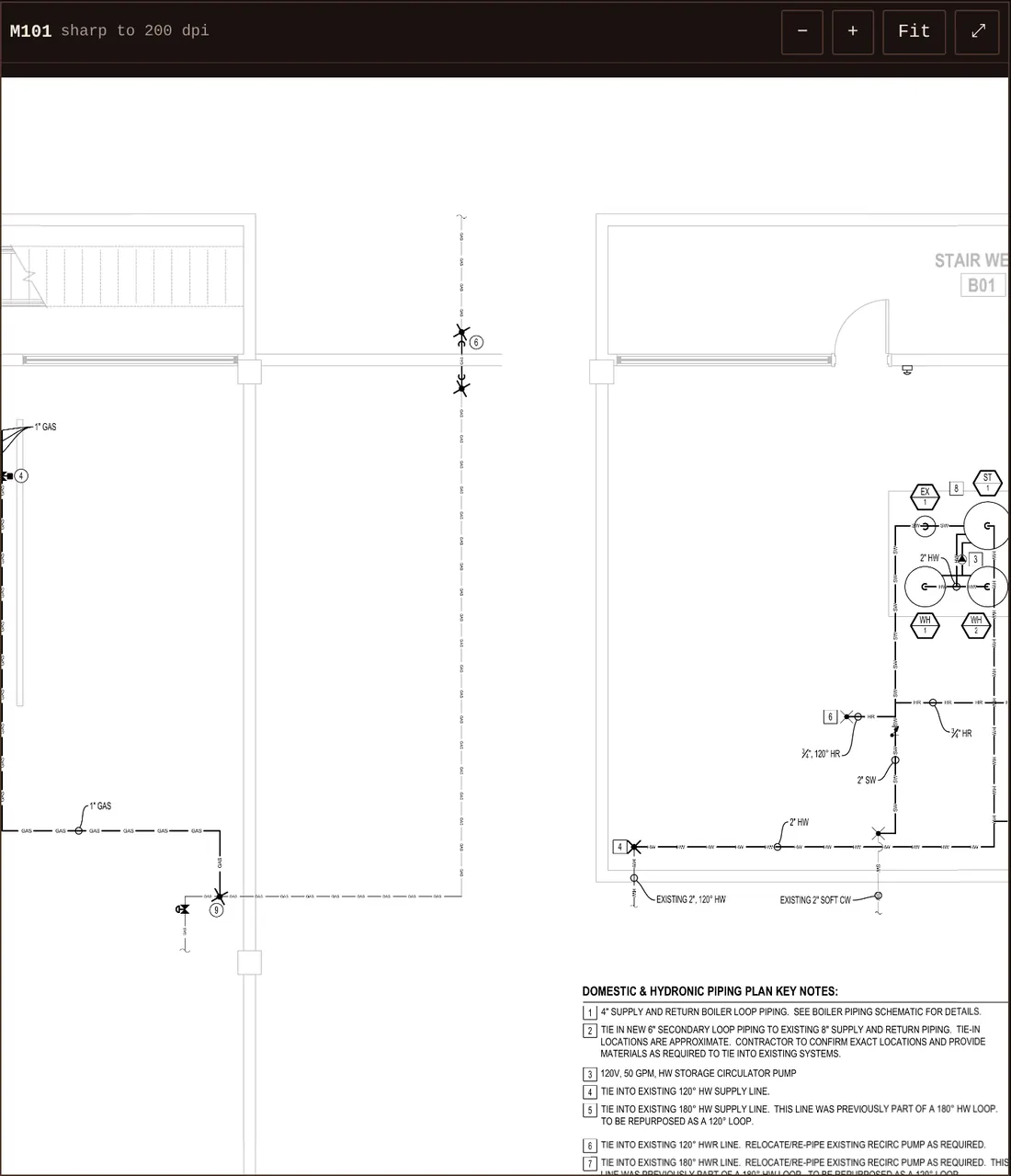

Sheet M101, Mechanical Plan Lower Level, zoomed in on gas and domestic hot water piping and the piping plan key notes.
The page behind the answer. M101, Mechanical Plan Lower Level: the kind of sheet a citation sends you to.

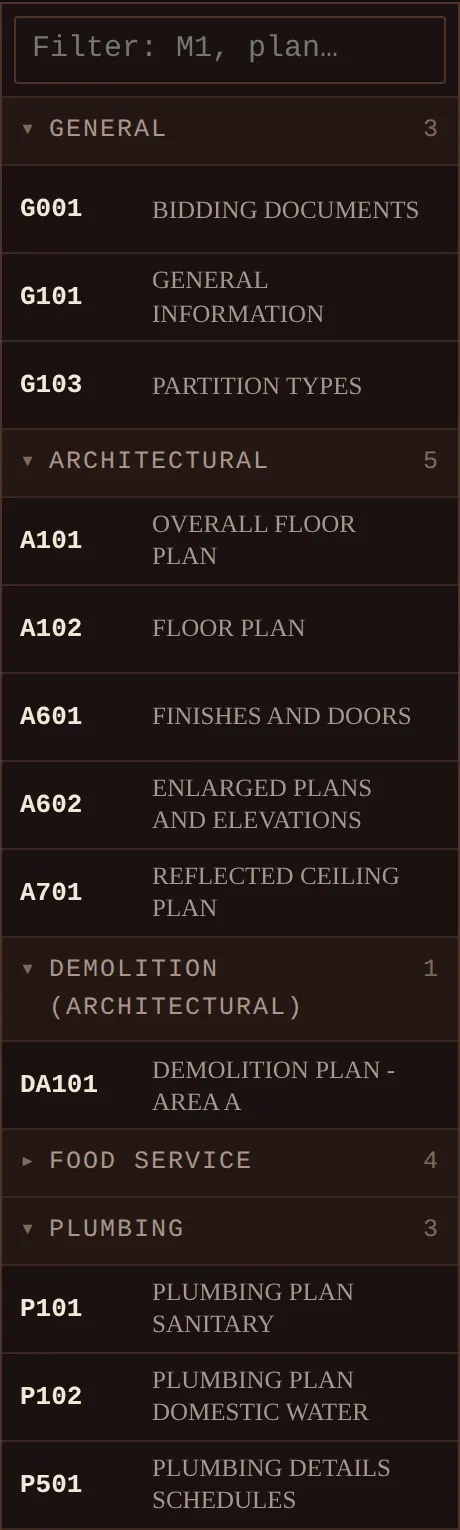

The Sheets panel listing sheets by discipline: General, Architectural, Demolition, Food Service, Plumbing, and Mechanical, each with its sheet number and title.
The whole set, by sheet. Numbers and titles, grouped by discipline.
Send a closed-out set, free  See the proof
